Product Detail

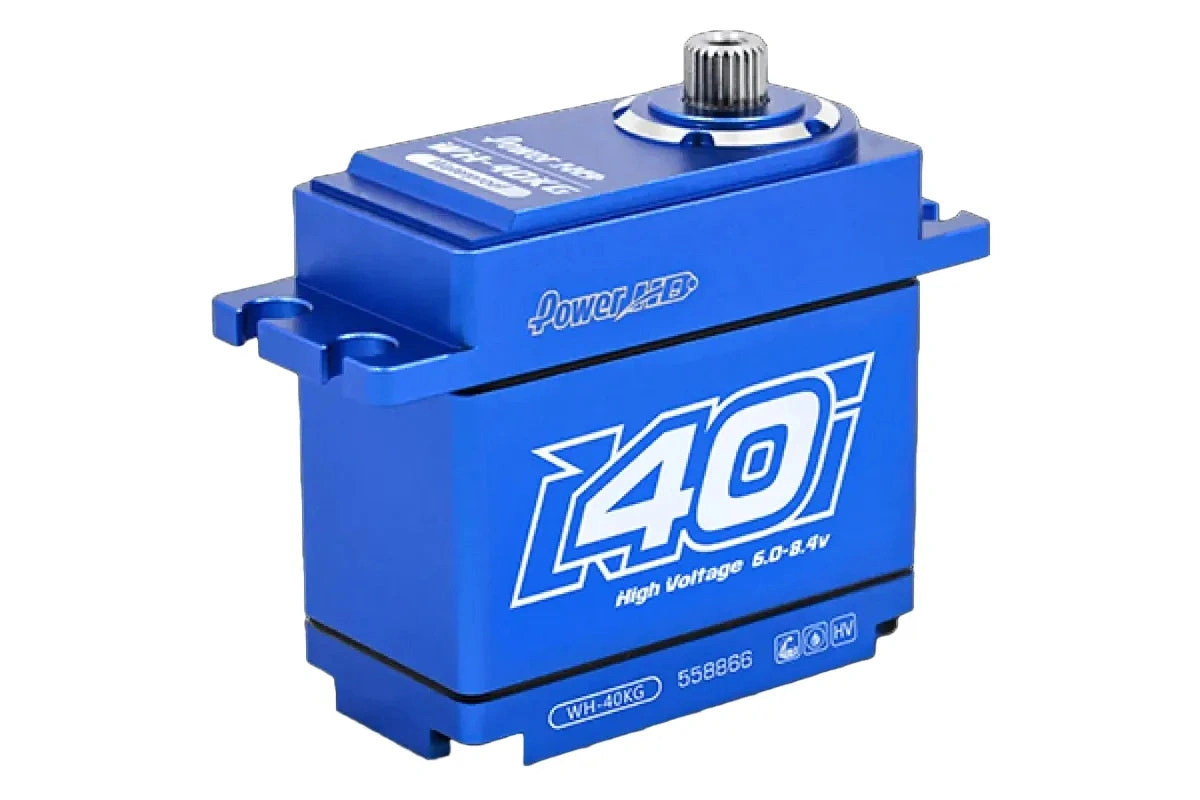

Power HD brings a range of crawler specific high-torque & high-voltage servos. With three variants; 40kg/cm, 30kg/cm, & 20kg/cm featuring a waterproof case & wiring system.

Features

• Servo case is CNC machined, ensuring higher quality
• Customised Power HD waterproofing system

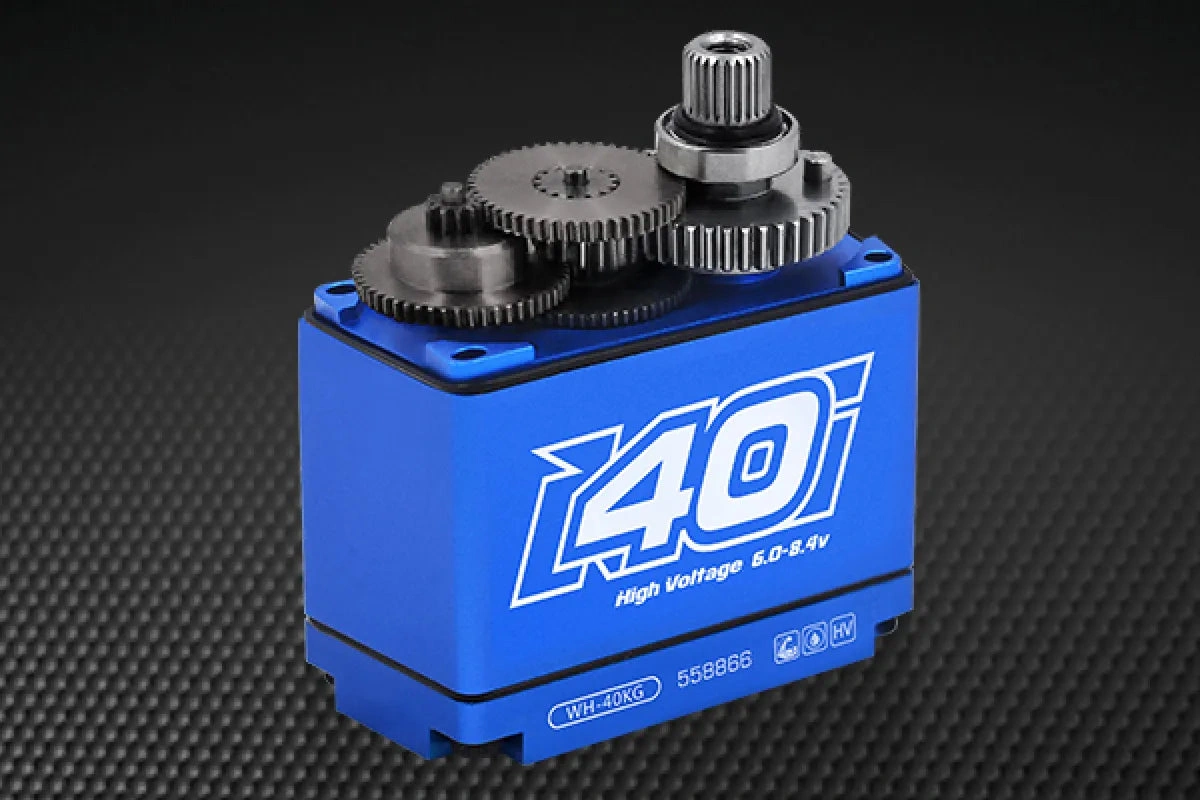

• Uses Hardened Steel Gears for extra strength and durability
• The 32-bit high-frequency MCU creates more precise operation with locked-rotor & power-on slow-start protection
• Casing is anodized in Blue

Specification

• Torque(6.0V): 29.0 kg-cm (402.7 oz/in)
• Torque(7.4V): 35.0 kg-cm (486.1 oz/in)
• Torque(8.4V): 40.0 kg-cm (555.5 oz/in)
• Speed: 0.20 sec (6.0V) ? 0.18 sec (7.4V) ? 0.17 sec (8.4V)
• Operating Voltage?6.0 ~ 8.4V DC Volts
• Weight: 82 g (2.89 oz)
• Bearing Type?Ball Bearing x 2
• Motor Type?Coreless Motor
• Gear Type?Titanium & Steel
• Operating Temperature?-20?~60?
• Working frequence?1520?s / 333hz
• Size?40.7 x 20.5 x 38.5 mm (1.60 x 0.81 x 1.52 in

Include

• Blue Aluminium Standard Coreless 40kg 8.4v Steel Geared Waterproof Servo

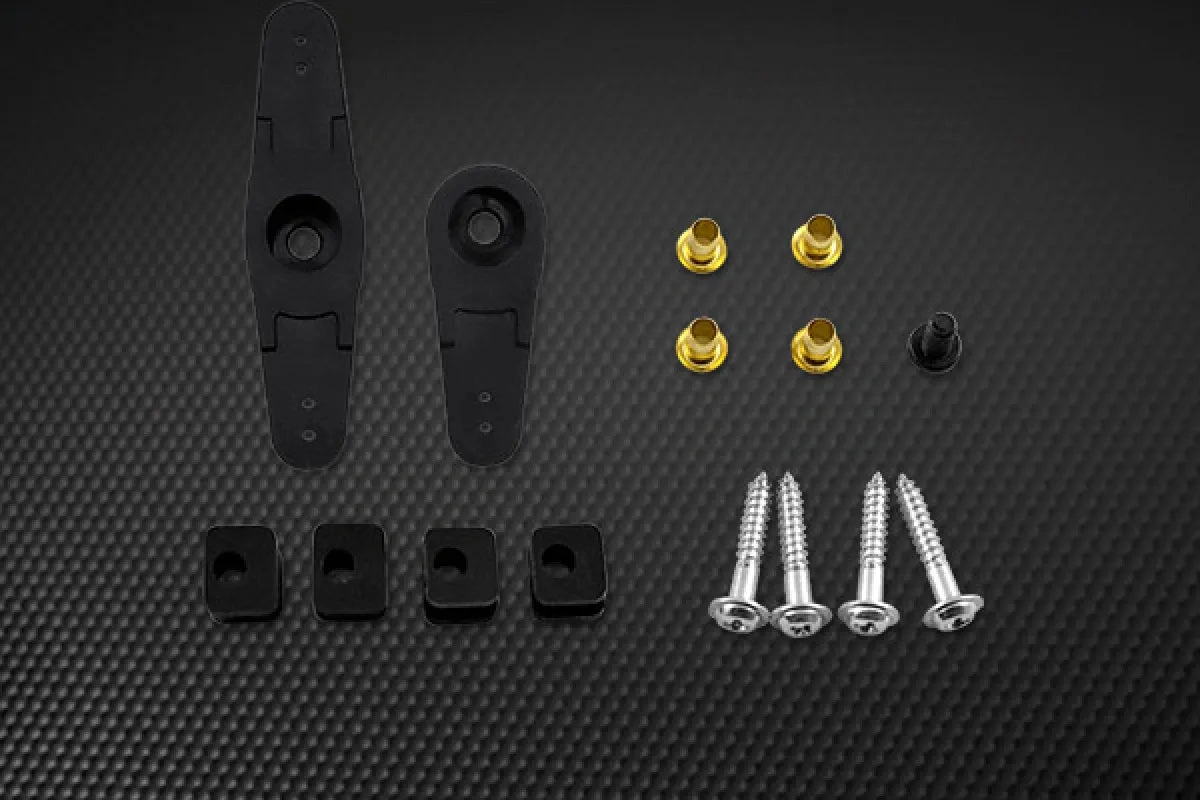

• Hardware Set
• Decal Sheet
